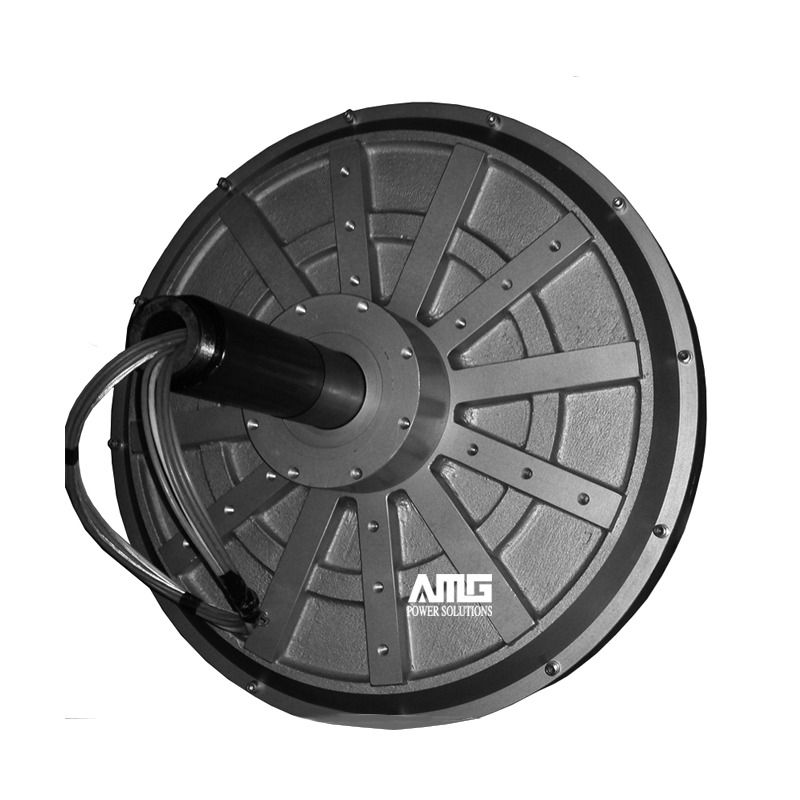

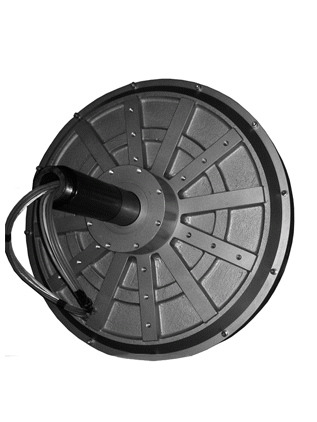

5000w/5kw 100RPM Low Speed Disc Coreless Alternator
Description
| Model | AMG5KW-700 |
| Rated power(kw) | 5 |
| Rated speed(rpm) | 100 |
| Rated voltage(vac) | 380VAC |
| Rated Current(A) | 7.6 |
| Efficiency | >88% |
| Winding type | Y |
| Insulation Resistance | 100Mohm Min(500V DC) |
| Leakage level | <5 ma |
| Start torque(N*M) | <1 |
| Phase | Three phase |
| Structure | outer rotor |
| Stator | coreless |
| Rotor | Permanent magnet |
| Gen. Diameter(mm) | 700 |
| Gen. Length(mm) | 450 |
| Gen. Weight(kg) | 135 |
| Shaft. Diameter | 85 |
| Housing Material | Aluminum ( Alloy ) |
| Shaft Material | Carbon Steel |
3kw vertical low rpm ac generator for hydro,wind turbine use,different rpm / voltage available; 100/180/200/300rpm etc,welcome to contact us for more details
