Coreless PMG Alternator

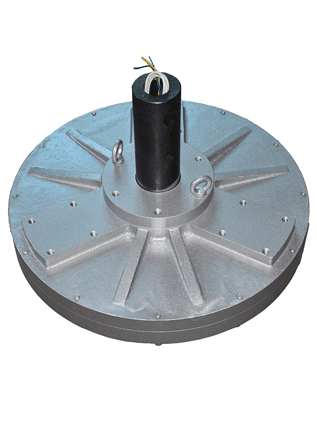

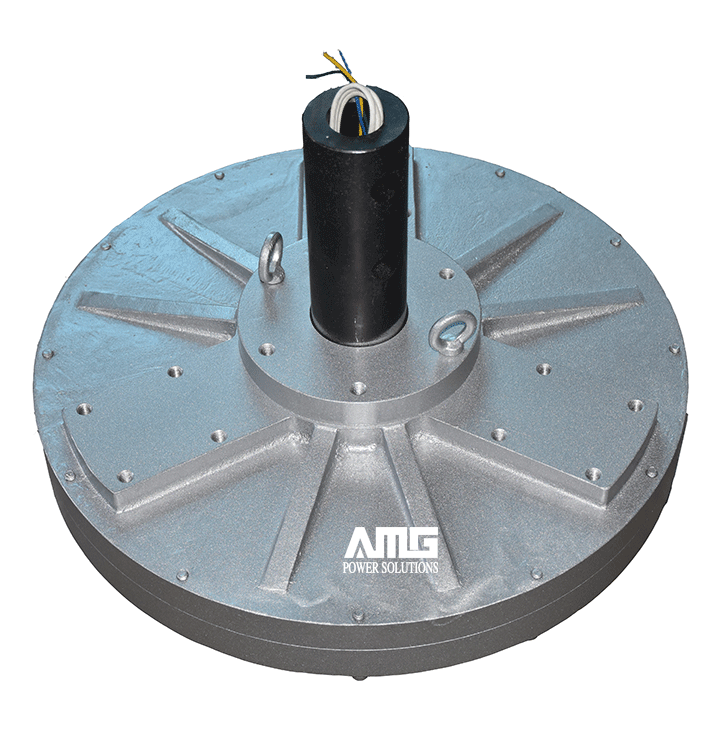

1.5kw 100RPM 220v/380v Coreless AC PMG
Description
| Model | AMG1.5KW-550 |
| Rated power(kw) | 1.5 |
| Rated speed(rpm) | 100 |
| Rated voltage(vac) | 380/220 |
| Rated Current(A) | 2.4/4.1 |
| Efficiency | >85% |
| Resistance (Line-Line) | - |
| Winding type | Y |
| Insulation Resistance | 100Mohm Min(500V DC) |
| Leakage level | <5 ma |
| Start torque(N*M) | <0.5 |
| Phase | Three phase |
| Structure | outer rotor |
| Stator | coreless |
| Rotor | Permanent magnet |
| Gen. Diameter(mm) | 550 |
| Gen. Length(mm) | 330 |
| Gen. Weight(kg) | 65 |
| Shaft. Diameter | 78 |
| Housing Material | Aluminum ( Alloy ) |
| Shaft Material | Carbon Steel |
