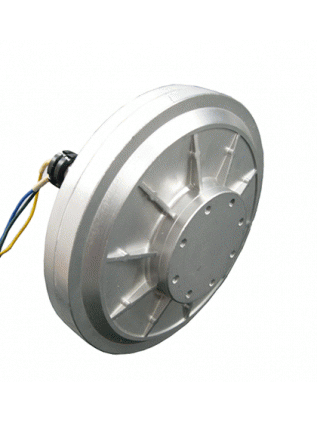

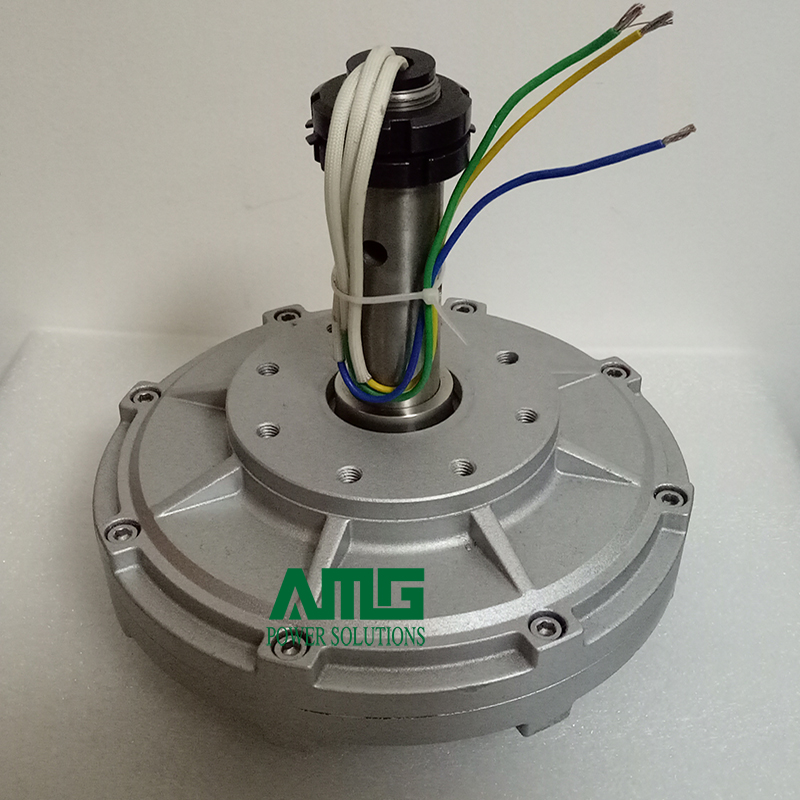

Outer Roter Permanent Magnet Alternator 350w 150rpm Low Start Up Torque

^{Coreless, anhysteresis, slotless, have low starting torque.}
^{No iron loss, have high efficiency}
^{Adopt unique coreless precision winding technology design precision coil}
^{Adopt the rare earth permanent magnet, which is multipole, mean gap, high power density and high output power.}
^{Low speed direct driving, no torque fluctuations}
^{Compact structure, high ratio of power to volume}
^{No iron loss, low calorific value,small temperature rise}
^{Simple structure, easy to install}
^{The brushless structure, free maintenance}

Description

300w Permanent Magnet Generator

250rpm/250rpm/400rpm available

or customization accepted

Model	AMG0.35KW-320
Rated power(w)	0.35
Rated speed(rpm)	150
Rated voltage)(vac)	24
Rated Current(A)	8.4
Efficiency	>80%
Resistance (Line-Line)	-
Winding type	Y
Insulation Resistance	Min(1000V DC)
Leakage level	<2 ma
Start torque(N*M)	<0.1
Phase	Three phase
Structure	outer rotor
Stator	coreless
Rotor	Permanent magnet type (outer rotor)
Gen. Diameter(mm)	320
Gen. Length(mm)	232
Gen. Weight(kg)	20
Shaft. Diameter(mm)	45
Housing Material	Aluminum ( Alloy )
Shaft Material	Steel
