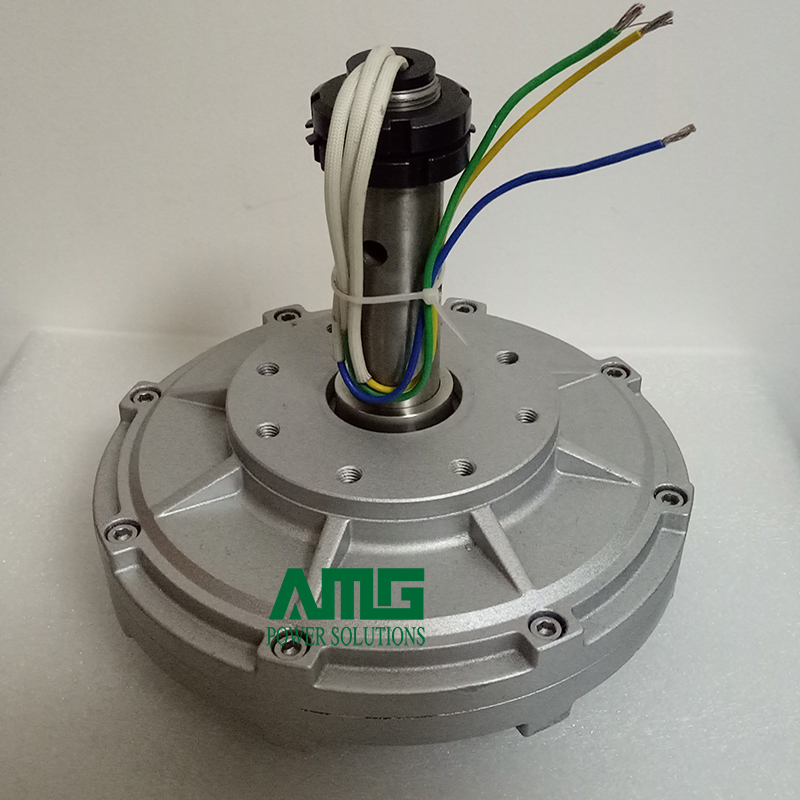

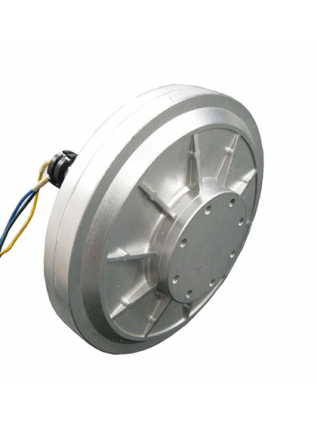

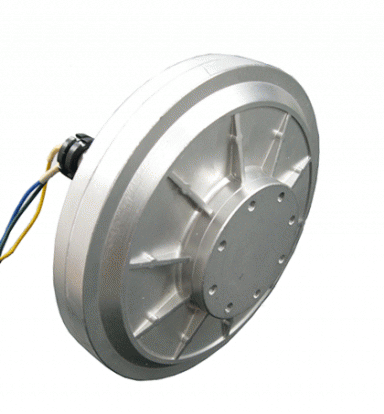

200w Coreless Permanent Magnet Generator Low RPM
Description
Please kindly be note 200w Disc Permanent Magnet Alternator, there are 200rpm,300rpm,500rpm available, or rpm customization ok, please contact us for details.
| Model | AMG0.2KW-260 |
| Rated power(w) | 0.2 |
| Rated speed(rpm) | 200 |
| Rated voltage)(vac) | 14/28VDC |
| Rated Current(A) | 14.5/7.2 |
| Efficiency | >75% |
| Resistance (Line-Line) | <1.5ohm |
| Winding type | Y |
| Insulation Resistance | 100Mohm Min(500V DC) |
| Leakage level | <5 ma |
| Start torque(N*M) | <0.1 |
| Phase | Three phase |
| Structure | outer rotor |
| Stator | coreless |
| Rotor | ermanent magnet |
| Gen. Diameter(mm) | 260 |
| Gen. Length(mm) | 192 |
| Gen. Weight(kg) | 10.5 |
| Shaft. Diameter(mm) | 30 |
| Housing Material | Aluminum ( Alloy ) |
| Shaft Material | Steel |
