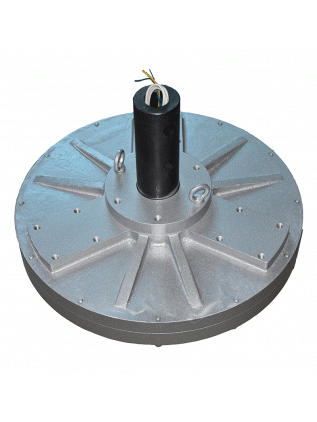

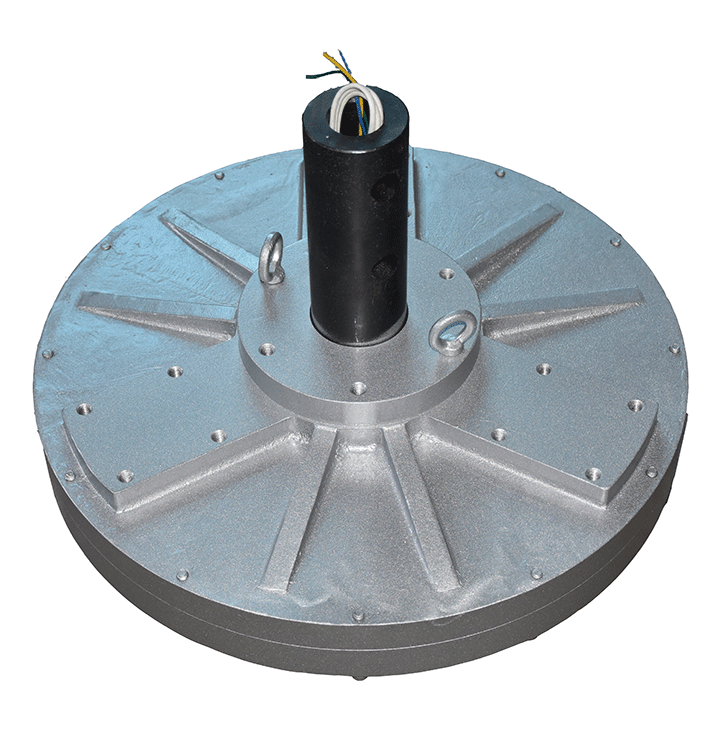

1000watt 200RPM Low Speed Coreless Generator for Vertical Wind Turbine
Description
|
Model |
AMG1KW-380 |
| Rated power(w) | 1 |
| Rated speed(rpm) | 200 |
| Rated voltage)(vdc) | 56VDC |
| Rated Current(A) | 17.9 |
| Efficiency | >85% |
| Resistance (Line-Line) | <15.2ohm |
| Winding type | Y |
| Insulation Resistance | 100Mohm Min(500V DC) |
| Leakage level | <5 ma |
| Start torque(N*M) | <0.3 |
| Phase | Three phase |
| Structure | outer rotor |
| Stator | coreless |
| Rotor | Permanent magnet |
| Pole | 20 |
| Gen. Diameter(mm) | 380 |
| Gen. Length(mm) | 241 |
| Gen. Weight(kg) | 32 |
| Shaft. Diameter(mm) | 50 |
| Housing Material | Aluminum ( Alloy ) |
| Shaft Material | Steel |
| Bearing | NSK 6206ZZ*2 |
