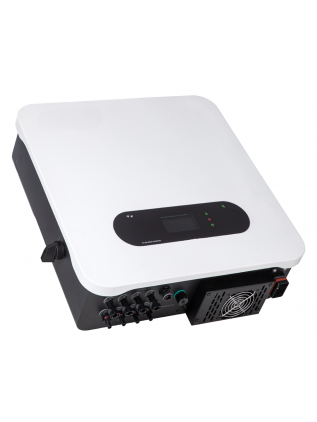

TP series Three Phase Solar Grid Tied Inverter (15KW / 20KW)
Rated power 15kw / 20kw
Dual MPPT three phase solar grid connected inverter
Leading edge digital control technology
strong aluminum case, compact structure
WiFi/GRPS remote monitoring available
Max efficiency up to 98.6%
Big LCD display(showing power/dc volatge/ac voltage etc)
IP65 protection grade
Anti-islanding, short-circuit,overload, over/under volatge protection etc
5 years warranty
Description
Model No | TP15kTL | TP20kTL |
DC side/Input parameters | ||
Max. DC power [W] | 16500 | 22000 |
Max. DC voltage [Vdc] | 1000 | 1000 |
Min. System start/Shut down voltage [Vdc] | 250 | 250 |
MPPT voltage range[Vdc] | 250-850 | 250-850 |
Max. input current [A] | 20/20 | 25/25 |
Number of MPP trackers | 2 | 2 |
Strings per MPP tracker | 3 | 4 |
AC side/output parameters | ||
Nominal output power [W] | 15000 | 20000 |
Maximum output power [W] | 16500 | 22000 |
Nominal AC output [W] | 50/60hz;400vac | |
AC output range | 45/55hz;280-490Vac(adjustable) | |
Power factor [%] | 0.8 lead, 0.8lag | |
Harmonics | <1.5% | |
Grid Type | 3W/N/PE | |
Efficiency | ||
Maximum conversion efficiency[%] | 98.5 | 98.6 |
European efficiency[%] | 98 | 98.1 |
MPPT efficiency[%] | 99.9 | 99.9 |
Protection | ||
DC reverse-polarity protection | ||
DC breaker | yes | |
DC/AC SPD | yes | |
leakage current protection | yes | |
Insulation impedence detection | yes | |
Residual current protection | ||
General Parameters | ||
Dimension(L/W/H)[mm] | 480*400*180 | |
Weight(kg) | 505*525*245 | |
Topology | Transformerless | |
Protection degree | IP65 | |
Operation temperature[ºC] | -25 ~ 60 | |
Display | LCD | |
Humidity | 0-95%,no consendation | |
Communication | WiFi/GPRS | |
More technical characteristics are avaliable on demand and customized. |
