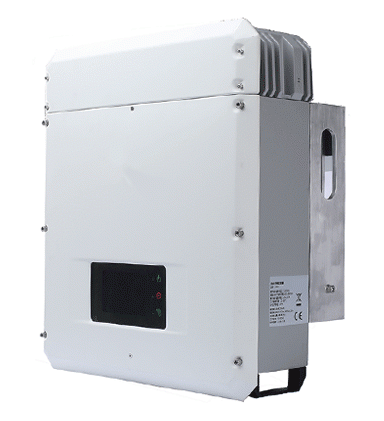

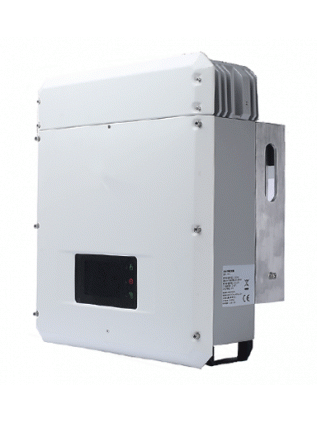

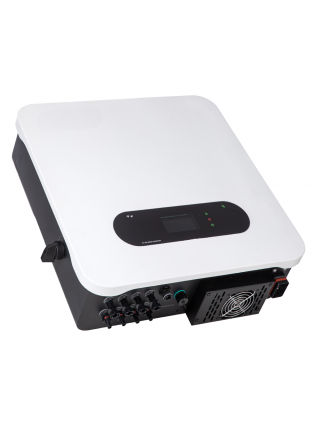

Three Phase Solar Grid Tied Inverter (10KW15KW20KW)

^{Rated power 10KW / 15KW / 20KW}

^{Dual MPPT three phase solar grid connected inverter}

^{Leading edge digital control technology}

^{strong aluminum case, compact structure}

^{WiFi/GRPS remote monitoring available}

^{Max efficiency up to 98.6%}

^{Big LCD display(showing power/dc volatge/ac voltage etc)}

^{IP65 protection grade}

^{Anti-islanding, short-circuit,overload, over/under volatge protection etc}

^{5 years warranty}

Description

Model No	TP10kTL	TP15kTL	TP20kTL
DC side/Input parameters
Max. DC power [W]	11500	16500	22000
Max. DC voltage [Vdc]	1000	1000	1000
Min. System start/Shut down voltage [Vdc]	250	250	250
MPPT voltage range[Vdc]	250-850	250-850	250-850
Max. input current [A]	17/17	20/20	25/25
Number of MPP trackers	2	2	2
Strings per MPP tracker	2	3	4
AC side/output parameters
Nominal output power [W]	10000	15000	20000
Maximum output power [W]	11000	16500	22000
Nominal AC output [W]	50/60hz;400vac
AC output range	45/55hz;280-490Vac(adjustable)
Power factor [%]	0.8 lead, 0.8lag
Harmonics	<1.5%
Grid Type	3W/N/PE
Efficiency
Maximum conversion efficiency[%]	98.3	98.5	98.6
European efficiency[%]	97.8	98	98.1
MPPT efficiency[%]	99.9	99.9	99.9
Protection
DC reverse-polarity protection	yes
DC breaker	yes
DC/AC SPD	yes
leakage current protection	yes
Insulation impedence detection	yes
Residual current protection	yes
General Parameters
Dimension(L/W/H)[mm]	480400180
Weight（kg）	50
Topology	Transformerless
Protection degree	IP65
Operation temperature[ºC]	-25 ~ 60
Display	LCD
Humidity	0-95%,no consendation
Communication	WiFi/GPRS
More technical characteristics are avaliable on demand and customized.
