Helix Wind Turbine for Streetlight Use 100W 200W 300W 400W 500W 600W

permanent magnet axial flux coreless generator, low start up torque and durable use

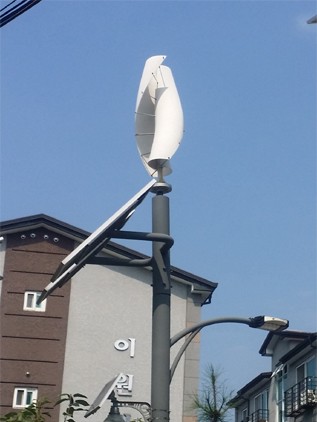

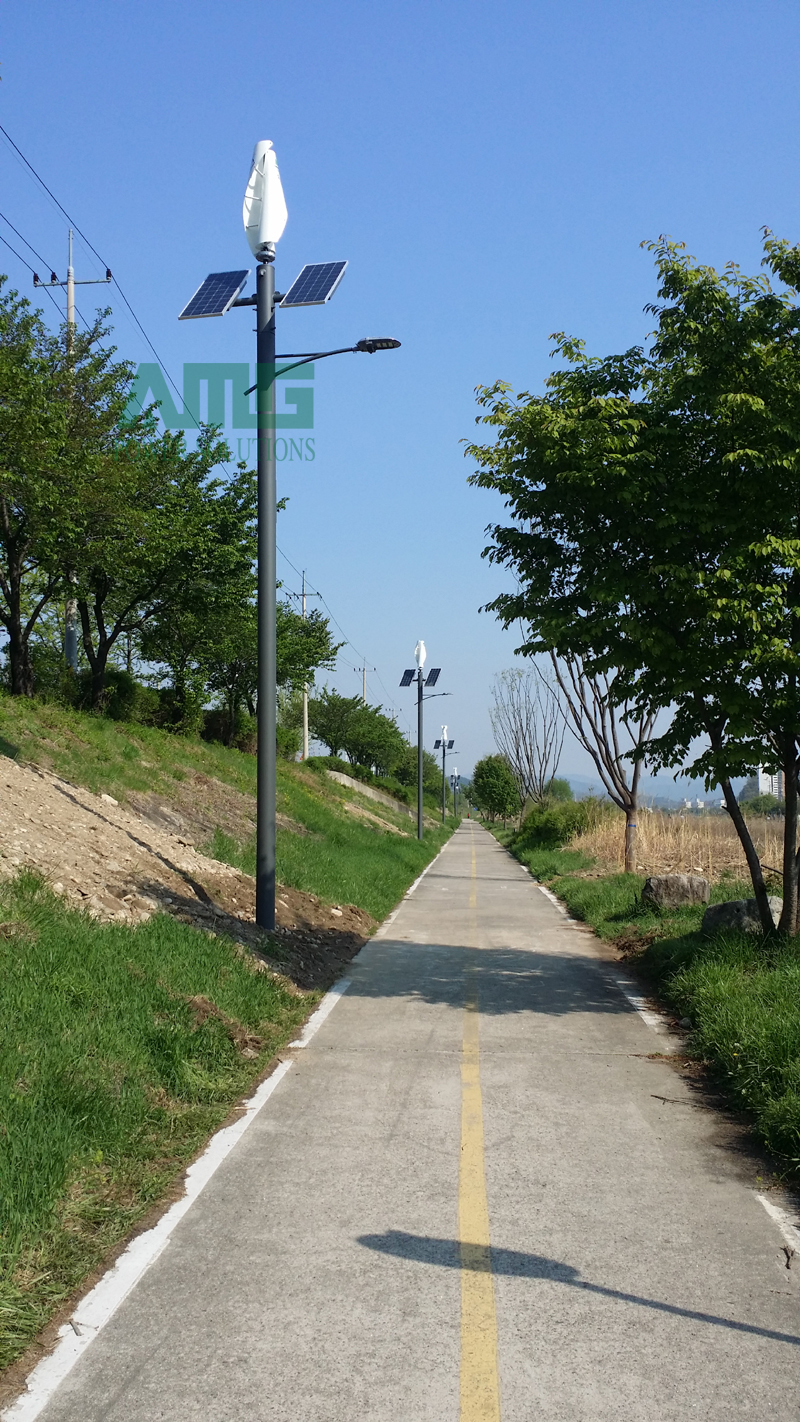

Low start up wind speed :1.3m/s, good option for wind solar hybrid streetlight
Rich colors: white, orange, yellow, blue, green, mixed, customizable.
One-piece Blade design ensures higher rotational stability.
Easy installation, Screw & Play.

Description

Product name	Helix vertical wind turbine
Started wind speed (m/s)	1.3 m/s
Cut-in wind speed (m/s)	2.5 m/s
Rated Wind speed (m/s)	11 m/s
Safe wind speed (m/s)	Max wind speed：≤40m/s
	instantaneous maximum wind speed≤45m/s
Rated voltage（DC）	12/24V
Rated power（W）	100W	200W	300W	400W	500W	600W
Max power（W）	150W	250W	350W	450W	580W	700W
Rotor Diameter of Blades	0.52m
Blades Height（m)	1.05(no generator)			1.3(no generator)
	1.17 (include generator & Flange)			1.42 (include generator & Flange)
Blades quantity	2
Blade material	glass/basalt
Generator	Three phase permanent magnet suspension motor
Control System	Electromagnet
Mount Height（m)	7~12m （9m）
Generator protection grade	IP54
Work environment temperature	VAWT -25~+45℃
	controller -10~+45℃
	Inverter 0~+40℃
Work environment humidity	VAWT ≤90%
	Controller and inverter≤80%
Altitude	≤4500m
Product assembly weight (Kg)	<20Kg
Overspeed protection	Electromagnetic brake
Overload protection	Electromagnetic brake and unloading unit
