3KW Solar On Grid Kit
3kw Solar On Grid System feature:
* On-Grid Solar Energy System consists of 3kw solar panels, solar inverter, solar panel racking, dc/ac combiner box,cables,connectors etc
* The solar panels generate electricity at daytime and is connect to the city power or household appliance directly.
* There is no need of battery.
* The inverter which converts DC to AC to power loads, it connect with solar panel and grid power directly.
* The inverter intelligently control the whole system process and provides various protections.
Intelligent Remote Monitoring(GPRS/WiFi available)
| System Basic Information | |
| Solar Panel Rated Output Power: | 3.0KW |
| Daily Power Production: | 12KWH-21KWH |
| Rated Output AC Capacity: | 3.0KW |
| Installation Area Required | 30m² |
| Solar Panel | |
| Type | Poly Crystalline Silicon PV Module |
| Max Power: | 270W*11pcs |
| Vmp: | 31.3V |
| Size: | 1640×990×35mm |
| Weight: | 20kg/pc |
| 25 years power output guarantee | |
| (Note: 11pcs panels in series as a string) | |
| Inverter (On Grid) | |
| MPPT Voltage range | 100-550V |
| Max DC Power | 3300W |
| Nominal DC Power(W) | 3000W |
| Number of MPPTs | 1 |
| Norminal AC Power | 3KW |
| Nominal output voltage/range [V] | 208,220,230,240/180~265 |
| AC grid frequency/range [Hz] | 50,60/±4.5 auto-selection |
| AC connection(with PE) | single |
| Communication | GPRS or WiFi |
| Warranty | 5years |
| Solar panel rack | |
| Aluminum alloy racking, stainless steel fittings | |

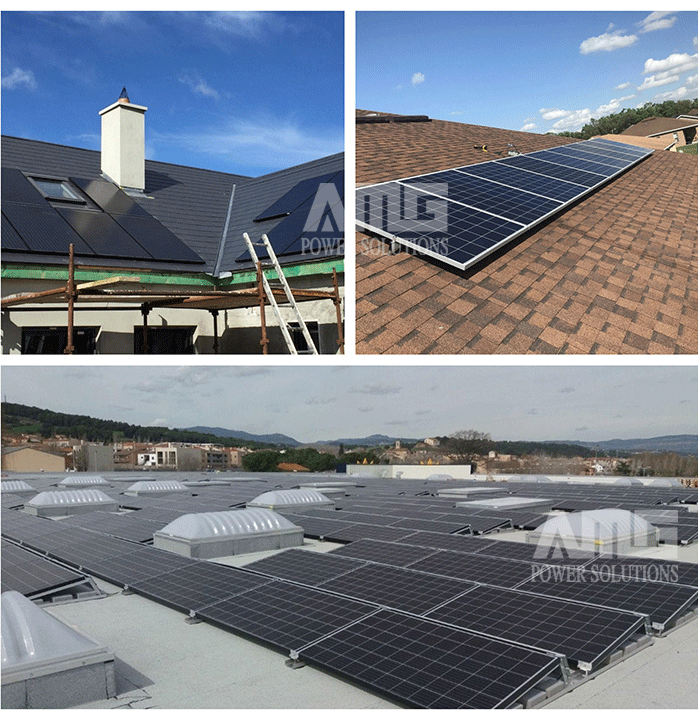

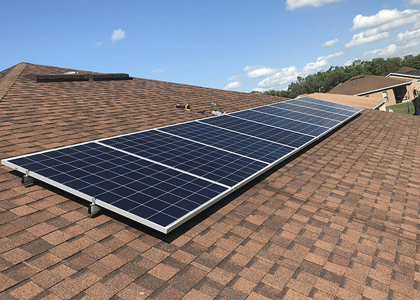

| Ground or Roof mounting rack, customized design | |
| Distribution box | |
| 1 set(ac breaker,spd) | |
| Cables | |
| DC4mm2 | |
| AC 3*4mm2 | |
| Connector | |
| MC4 connector | |
