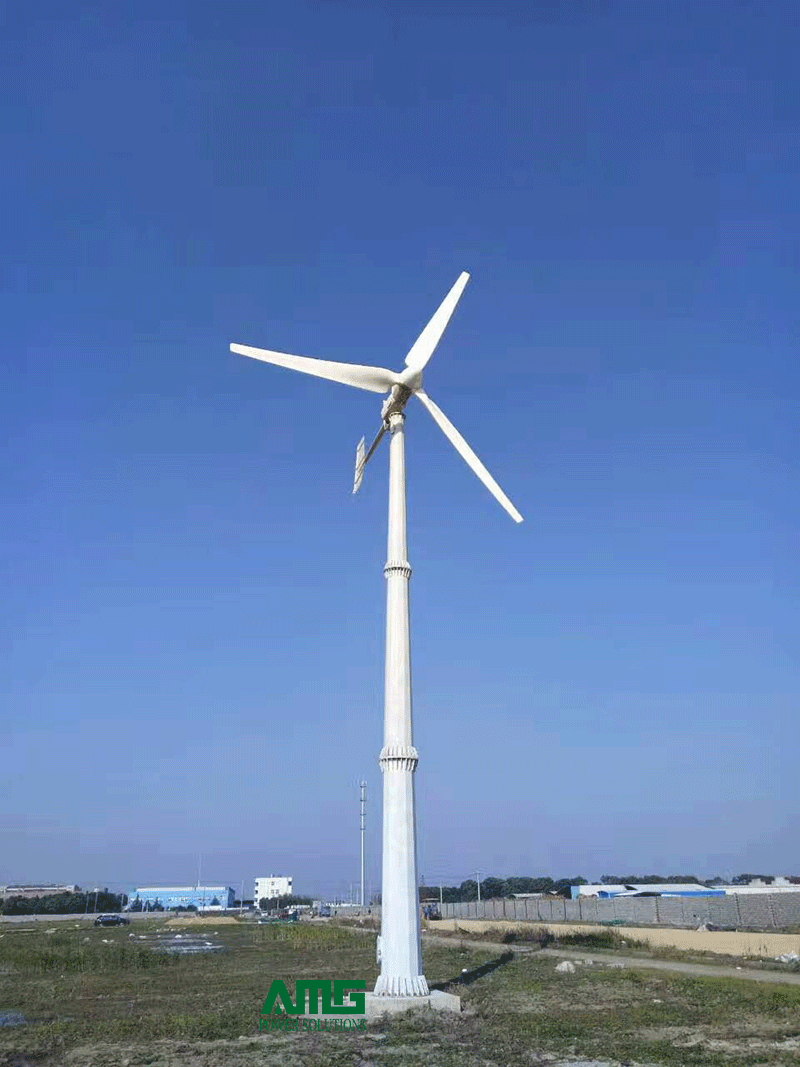

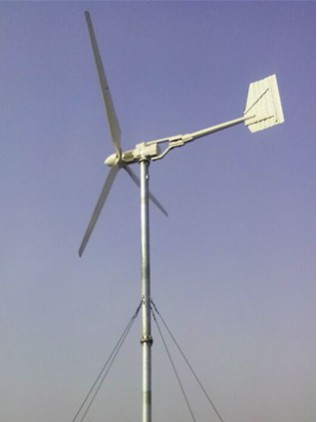

10kw small home wind turbine for island / communication base

1. Rare earth permanent-magnet generator

2. Small vibration and tiny friction, stable rotation in high speed

3. Streamlined wind turbine body and blade outline design

4. dynamic-balanced high-rigidity FRP materials blades

5. Noice level below 45dB around the wind turbine tower

6. Use magnetic saturation technology, with 20years designed life;

7. Select high quality bearing, free to maintenance;

8. Anti-twist device, generator can whirl in each direction

9. Anti strong wind, the blade protect itself automatically,

10. Supply matched controller/inverter, make the system more stable

Description

Model	HC-10000
Rated power	10000w
max Power	15000w
Generator
generator type	3phase permanent magnet synchronization generator
Max start torsional moment n/m	7.5
rated rpm	200
rated voltage	380V
start wind speed	3(m/s)
rated speed	10m/s
woking wind speed	3.0-30(m/s)
Safety wind speed	45(m/s)
Blades
blade diameter	7m
material of the blades	Fiberglass-Reinforced Plastic
NW
body weight except tower	650kg
Other
suggested controller	500V100A
suggested battery	12v150AH*40pcs
